Tutorial: Reading outputs (and trusting them)¶

Audience: new users who want to sanity-check results and locate key outputs.

DYNAMITE writes a self-contained output directory for each run. This directory is designed to be both:

easy to inspect quickly (text summaries), and
reproducible / restartable (versioned params + full state in HDF5 or binary).

What you’ll typically see (high level)¶

At minimum, each output directory contains:

a full-state file (data.h5 when HDF5 is available, otherwise data.bin), and
params.txt (the provenance record: parameters, CLI, build/version info),

plus a few small text summaries intended for quick plotting.

For the full, canonical list of outputs and on-disk formats (including the compressed snapshot files), see Concepts → Architecture.

Quick inspection (HDF5)¶

If data.h5 exists, you can inspect structure with common tools:

h5ls -r data.h5
h5dump -n data.h5

If you want dataset names/semantics, see Concepts → EOMs and observables.

Tip: params.txt is the fastest way to see exactly what the run did (grid size, tolerances, CPU/GPU mode, etc.).

Text summaries (fast plotting)¶

For most physics-facing diagnostics you don’t need to parse the full 2D state immediately. Start with the text files:

energy.txt: time series of the energy (used for stability checks and aging analysis)
correlation.txt: commonly used slices/diagnostics of \(C\) (format documented in-file; see file header)
rvec.txt: reduced/diagonal observables (format documented in-file)

These are intended for quick plotting and sanity checks.

Binary fallback (`data.bin`) is fully supported¶

data.bin is not a “degraded mode”: it’s the supported non-HDF5 carrier for the full simulation state.

Save path: when HDF5 is unavailable (or fails), the program writes data.bin instead.
Load/resume path: binaries can be loaded to resume trajectories if compatible with the current build/version policy.

If you’re extending the I/O layer, see the I/O module overview in Concepts → Architecture.

Reproducibility & provenance (how to trust a run)¶

Each output directory includes the information needed to reproduce a run:

1) Exact code identity

Open params.txt and record: - code_version, git_hash, git_branch, git_tag, git_dirty
- compiler/CUDA versions and build timestamp

2) Exact runtime configuration

In params.txt you’ll also find: - the full stored command line
- physical parameters (\(p\), \(p2\), \(\lambda\), \(T_0\), \(\Gamma\))
- numerical parameters (grid len, tolerances, sparsification settings, integrator toggles)

3) Grid provenance

The run uses precomputed grid packages under Grid_data/<L>/. The grid generator writes metadata to:

Grid_data/<L>/grid_params.txt

and DYNAMITE mirrors key entries into params.txt (prefixed with grid_...). This makes it easy to confirm that a run used the intended grid package even after you move/copy the output directory.

Practical recommendation: keep params.txt alongside data.h5/data.bin when archiving or sharing results.

Sanity checks before trusting long runs¶

These checks are fast and catch most common issues:

CPU vs GPU short-time agreement: run a short trajectory with --gpu false and compare key summaries (e.g. energy.txt).
Grid convergence: compare L=512 vs 1024 (and 2048 if needed) at fixed parameters.
Tolerance sensitivity: tighten the integrator tolerance -e and confirm observables don’t shift materially.
Sparsification sensitivity (spot check): run briefly with --sparsify-sweeps 0 and confirm agreement in your observables of interest.
Resume discipline: when resuming, confirm params.txt compatibility and keep the original directory intact.

Next: plotting scripts¶

We provide small Python helpers under scripts/ to quickly plot standard summaries (energy vs time, etc.). See:

scripts/plot_energy_threshold_gap.py (log-log plot of \(E(t) - E_{\mathrm{th}}\))
scripts/plot_correlation.py

These are intentionally lightweight and can be adapted to create publication figures (e.g. \(C(t_w+\tau, t_w)\) at multiple waiting times, and response-vs-correlation parametric plots).

Dependencies: these scripts use numpy and matplotlib.

Threshold-energy gap plot (\(E(t) - E_{\mathrm{th}}\))¶

If your output directory contains energy.txt and params.txt, you can generate the standard log-log plot of the gap to threshold energy:

\[ E(t) - E_{\mathrm{th}} \]

where \(E(t)\) is read from energy.txt, and \(E_{\mathrm{th}}\) is computed from the parameters lambda, p, and q (with q usually stored as p2 in params.txt).

The script handles both \(\Gamma=0\) and \(\Gamma>0\) cases internally. If you want the full definition of \(E_{\mathrm{th}}\) and the equations used, see the accompanying paper and the relevant background sections in the Concepts pages.

Typical usage:

python3 scripts/plot_energy_threshold_gap.py /path/to/output/dir --out eth_gap.png

Notes:

The plot is log-log, so it requires \(t>0\) and \(E(t)-E_{\mathrm{th}}>0\). If early times lead to non-positive values, you can drop those points with:

python3 scripts/plot_energy_threshold_gap.py /path/to/output/dir --skip-nonpositive --out eth_gap.png

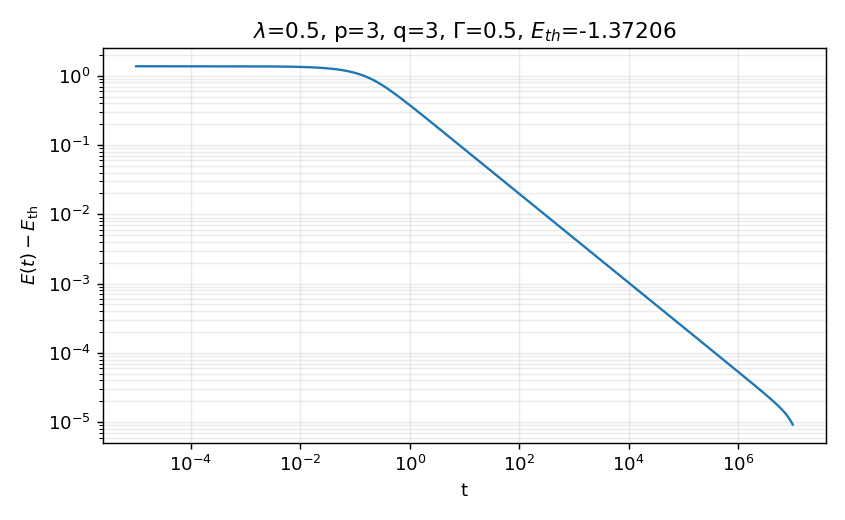

Example (commands + output figure):

Threshold-energy gap plot

# 1) Run a simulation (example parameters)
./RG-Evo -m 1e8 -D true -q 3 -l 0.5 -G 0.5 -L 512

# 2) Plot E(t) - Eth from the run output directory
python3 scripts/plot_energy_threshold_gap.py /path/to/output/dir --out energy.png

Correlation slice plot (\(C(t_w+\tau, t_w)\)) from compressed outputs¶

If your output directory contains the compressed snapshot files

QK_compressed
QR_compressed
t1_compressed.txt

you can quickly generate waiting-time slices of the correlation (or response) without reading the full history files. Here, we demonstrate this using a 2D spline interpolation of the compressed matrix.

Coordinates (important)¶

The compressed snapshot uses the variables \((t_1,\theta)\). For the on-disk file formats and the precise meaning of these coordinates, see Architecture → Compressed snapshots.

To evaluate a physical waiting-time slice, the script queries an interpolant at

\[ t_1 = t_w+\tau,\qquad \theta = \frac{t_w}{t_w+\tau}, \]

Typical usage¶

Below is an example waiting-time slice plot produced from a simulation run (saved as docs/assets/Cwaiting.png):

Waiting-time correlation slices from compressed outputs

An end-to-end workflow looks like:

# 1) Run DYNAMITE (example parameters)
./RG-Evo -m <max_steps> -D <true|false> -p <p> -q <q> -l <lambda> -L <L>

# 2) Plot C(t_w+τ, t_w) using the compressed snapshot written into the output directory
python3 scripts/plot_correlation.py /path/to/output/dir --out Cwaiting.png

Plot of the response function from QR_compressed instead:

python3 scripts/plot_correlation.py /path/to/output/dir --which QR --out Rwaiting.png

Change the waiting times (comma-separated list or a compact power-range like 100^0..3):

python3 scripts/plot_correlation.py /path/to/output/dir --tw "0,1,10,100" --out corr.png
